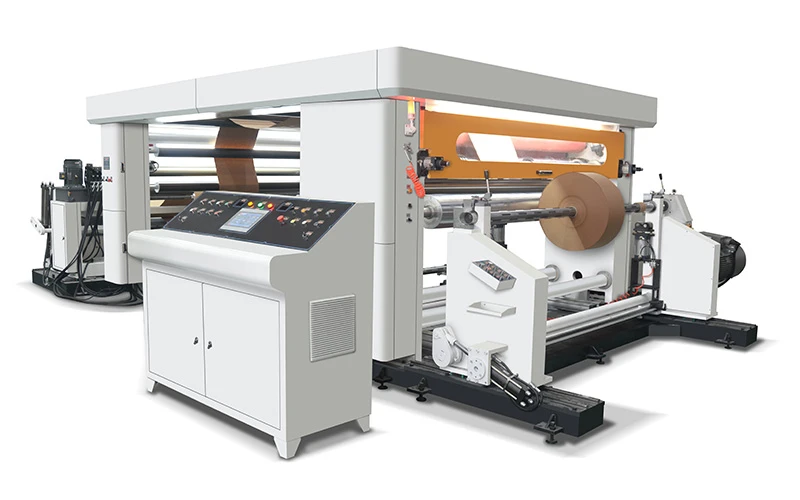

This is Jumbo Roll Slitting to Small Roll Rewinding Machine, suitable for many kinds of paper.Machine widely used in paper making, printing and packaging industries area.It suitable for customers who have highSpeed requirement.
Model |
KFQ Series 1600/2000/2400/2600mm |
Type ofSlitting |
Circular Slitting Blade |
Thickness Paper Range |
30-500 GSM |
Unwinding Reels Diameter |
Max 1800mm |
Unwinding Reels Weight |
4000KG |
Unwinding Paper Core |
3inch 6 inch 12 inch |
Max.Rewinding Diameter |
Max.1500mm |
Min.Slitting Width Range |
100mm |
Rewinding Paper Core |
3 Inch 4 inch 6inch 12 inch |
Max. Rewinding Roll Weight |
1500KG |
Slitting Accuracy |
±0.2mm |
Max.Slitting Speed |
500 meter/min |
Requirement of theAirPressure |
0.8MPa |
StandardVoltage |
AC380V/220Vx50HZ 3PH |
